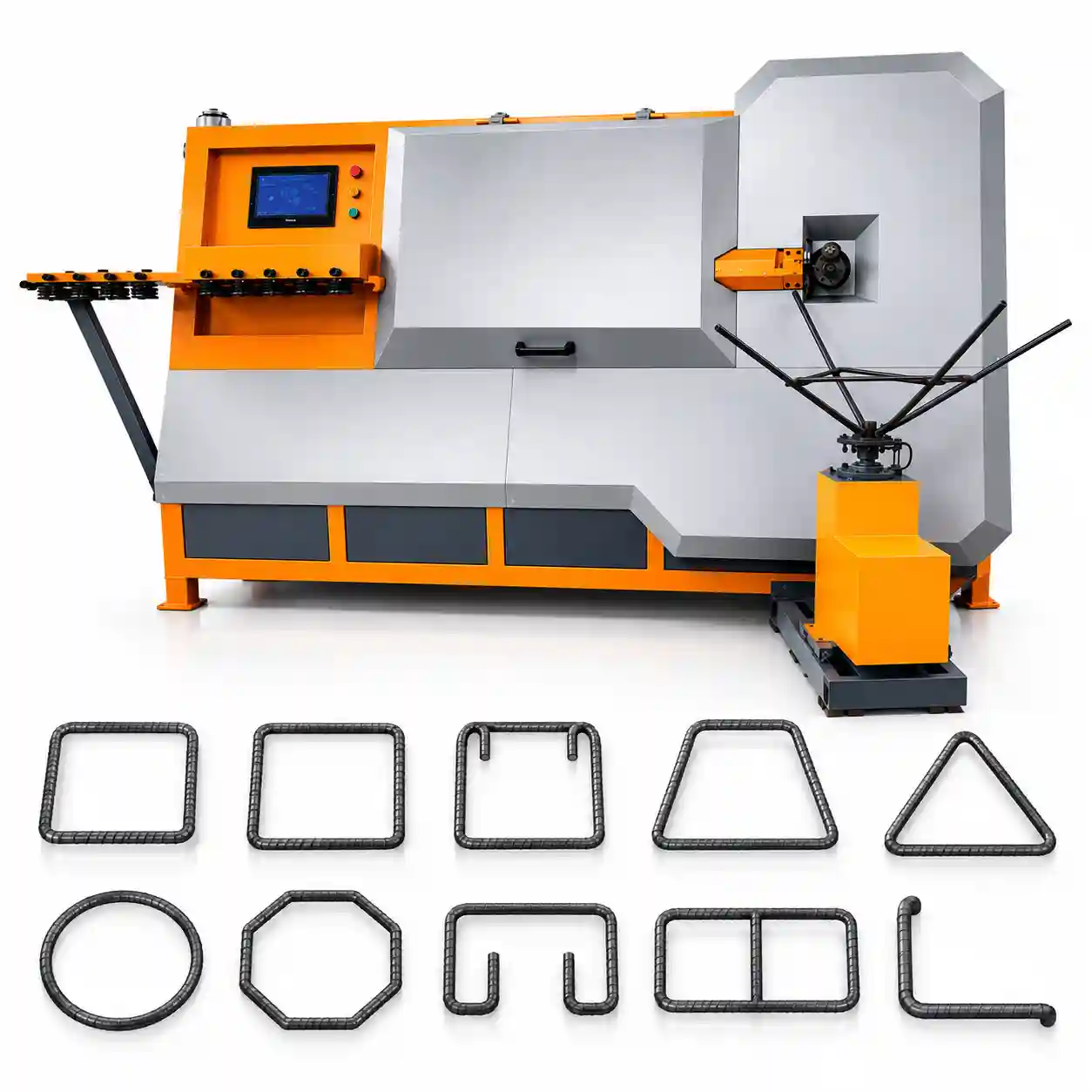

HH4-12C CNC Rebar Stirrup Bending Machine
The HH4-12C CNC Rebar Stirrup Bending Machine is designed for efficient and automatic production of stirrups and other reinforcement shapes for construction, precast concrete and rebar processing applications.
It supports 4–10 mm single-wire processing and 4–8 mm double-wire processing, combining feeding, alisar, medición, bending and cutting in one automated workflow.
Double Wire: 4–8 mm
Output: 1600–1800 pcs/h
HH4-12C automatic rebar stirrup bending machine in Haihui factory
HH4-12C CNC rebar bending machine operation
HH4-12C single wire and double wire rebar processing
Haihui rebar bending machine export wooden case
HH4-12C rebar bending machine container loading
CNC rebar stirrup bending machine factory testing
Características clave
Single & Double Wire
Supports 4–10 mm single-wire rebar and 4–8 mm double-wire processing for different production requirements.
CNC Automatic Control
Easy parameter setting for stirrup size and production quantity with consistent automated processing.
Integrated Processing
Alimentación automática, alisar, bending and cutting reduce repetitive manual work.
High Production Output
Rated output of approximately 1600–1800 pieces per hour according to the supplied machine specification.
Wide Stirrup Size Range
Suitable for stirrup sizes from 60 mm to 1000 mm.
Heavy-Duty Structure
Industrial machine construction designed for continuous rebar processing applications.
HH4-12C Technical Specifications
| Especificación | HH4-12C |
|---|---|
| Single-Wire Rebar | 4–10 mm |
| Double-Wire Rebar | 4–8 mm |
| Stirrup Size Range | 60–1000 mm |
| Bending Direction | Forward Bending |
| potencia total | 19.5 kilovatios |
| Drive Motor | 11.0 kilovatios |
| Bending Motor | 5.5 kilovatios |
| Cutting Motor | 4.0 kilovatios |
| Air Pump | 2.2 kilovatios |
| Output | 1600–1800 pcs/h |
| Peso de la máquina | 1800 kilos |
| Machine Dimensions | 3100 × 1100 × 1800 mm |
Note: Please confirm the final electrical configuration before order, especially total installed power and local voltage requirements.
Automatic CNC Rebar Processing
Rebar is automatically fed into the straightening system and processed according to the programmed dimensions.
The integrated bending and cutting system helps improve production consistency while reducing repeated manual operations.
- Alimentación automática
- Alisado automático
- CNC bending control
- Corte automático
- Continuous stirrup production
Single-Wire and Double-Wire Production
The HH4-12C can process single-wire rebar from 4 a 10 mm and double-wire rebar from 4 a 8 mm.
Double-wire processing can help increase production efficiency when manufacturing smaller stirrups in higher quantities.
Aplicaciones
Rebar Processing Plants
For batch production of reinforcement stirrups and formed rebar.
Construction Projects
Suitable for building and infrastructure reinforcement preparation.
Plantas Prefabricadas De Hormigón
Supports automated preparation of reinforcement components.
Steel Fabrication Workshops
Suitable for workshops processing multiple stirrup sizes and specifications.
Proyectos de infraestructura
Applicable to reinforcement production for roads, bridges and related projects.
Custom Rebar Processing
Suitable for manufacturers processing different reinforcement shapes and sizes.
Factory Testing and Export Packaging
Each machine can be assembled and tested before shipment. Alimentación, alisar, bending and cutting functions are checked according to the machine configuration.
For overseas delivery, suitable export packaging and container loading arrangements can be prepared according to the destination and shipping requirements.
¿Por qué elegir Haihui??
- CNC rebar processing equipment manufacturer
- Machine selection according to rebar diameter
- Operation guidance and technical support
- Spare parts support for overseas customers
- Factory testing before shipment
- International packing and shipping support
Get HH4-12C Factory Price
Tell us your rebar diameter, steel grade, stirrup size, single-wire or double-wire requirement, local voltage and destination country.
We can provide HH4-12C specifications, working videos, machine configuration and factory quotation.
HH4-12C CNC Rebar Stirrup Bending Machine
The HH4-12C CNC Rebar Stirrup Bending Machine is an automatic rebar processing machine designed for efficient production of stirrups and other reinforcement shapes.
The machine integrates automatic feeding, alisar, medición, bending and cutting into one continuous production process. CNC control helps improve bending consistency while reducing repetitive manual work.
Características clave
• CNC automatic control system
• Automatic rebar feeding and straightening
• High-speed bending and cutting
• Accurate and consistent stirrup production
• Multiple stirrup shapes can be programmed
• Easy operation and production adjustment
• Suitable for continuous rebar processing
Aplicaciones
The HH4-12C is suitable for rebar processing plants, construction projects, precast concrete factories, steel fabrication workshops and other reinforcement processing applications.
Multiple Stirrup Shapes
The CNC control system allows operators to program different bending dimensions and shapes according to project requirements, incluyendo cuadrado, rectangular, U-shaped and other reinforcement configurations.
¿Por qué elegir Haihui??
Máquina herramienta Co. de Xingtai Haihui., Limitado. specializes in CNC rebar processing machinery. We provide machine selection support, operation guidance, spare parts and technical support for overseas customers.
Get a Factory Quote
Need the HH4-12C price, technical specifications or working videos?
Send us your required rebar diameter, steel grade, stirrup dimensions, destination country and local voltage. We will recommend a suitable machine configuration and provide a factory quotation.
